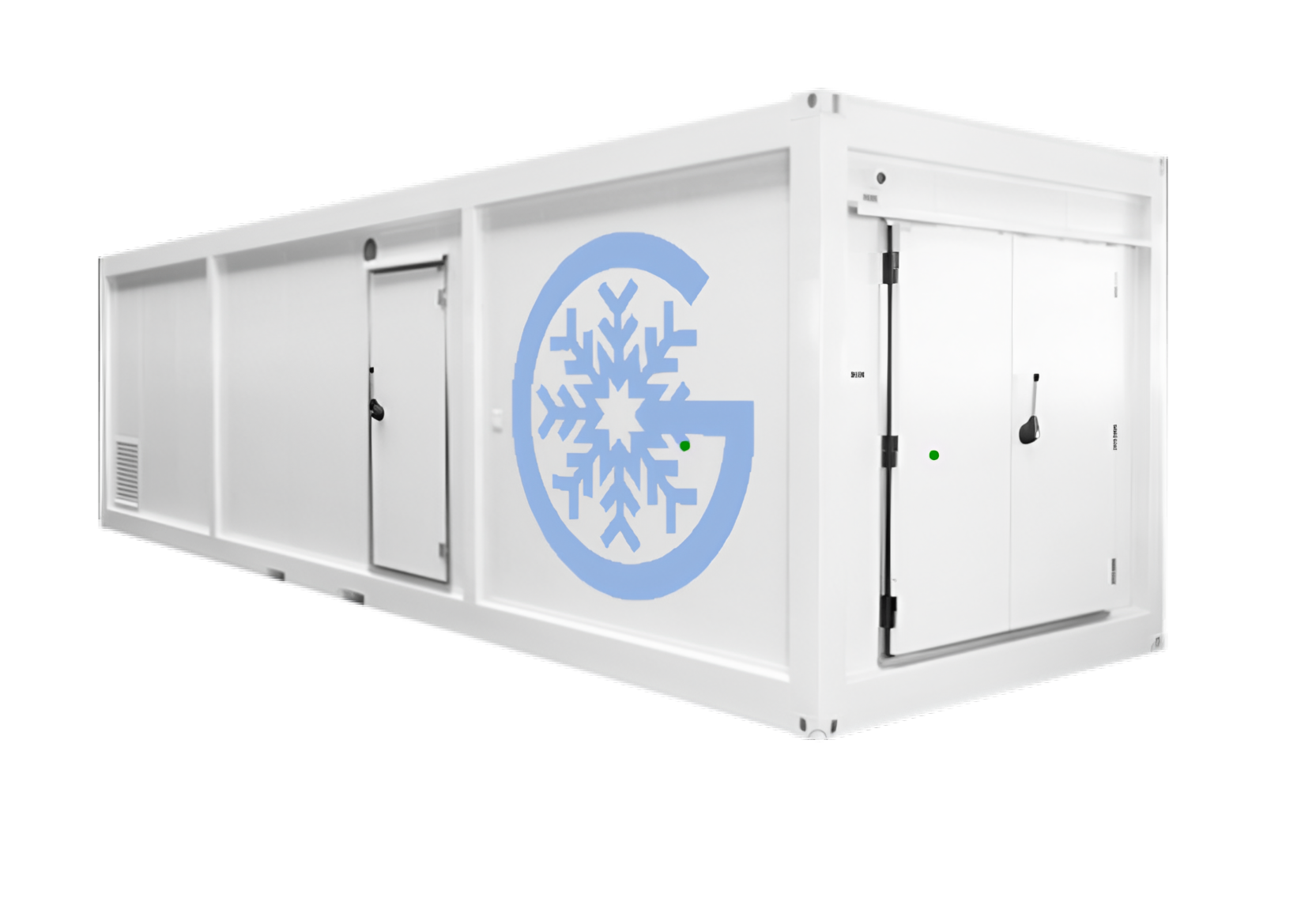

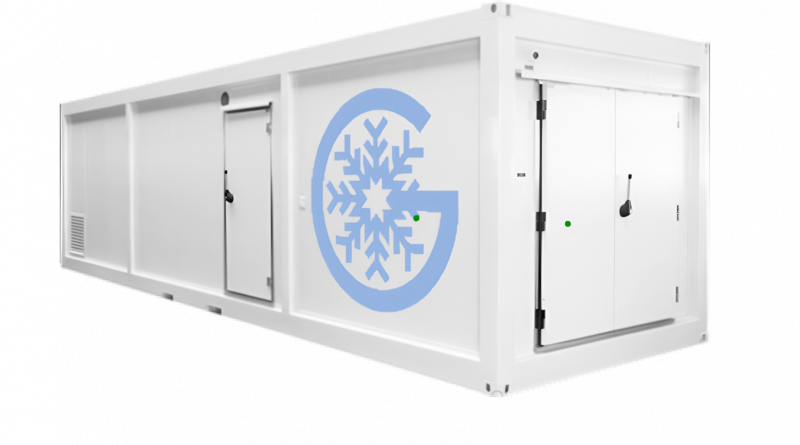

Dual Refrigerated and Deep-Freezer Containers
The Combi range of dual refrigerated and deep-freezer containers is designed to deliver maximum versatility for pharmaceutical and chemical cold chains. By combining two independently controlled compartments into a single unit, these containers enable businesses to operate refrigeration and deep-freezing simultaneously within a single footprint. With temperature settings from +30 °C down to -30 °C, the Combi range ensures that active pharmaceutical ingredients (APIs), intermediates, vaccines, and packaged medicines are stored under optimal conditions at every stage of the process.
From R&D facilities to large-scale production plants and distribution hubs, these combination containers provide precise climate control, energy-efficient insulation, and rugged durability. These dual-function containers enable quick and flexible adaptation of storage capacity while safeguarding product integrity.
Dual-Zone Refrigerated Containers for Flexible Cold Storage
The Combi range of dual refrigerated containers manufactured by GABLER offers a unique two-compartment configuration, enabling users to set different temperature zones independently. This makes it ideal for facilities with diverse storage requirements, reducing the need for separate units and optimising available space.
Each container is equipped with semi-hermetic, performance-controlled compressors, stainless steel flooring with TRI-Blech mounting, and air-cooled condensers designed for ambient conditions up to +37 °C. Safety and compliance are built in, with HACCP-aligned design, SUVA-compliant protection, and insulation thickness of 140–220 mm for energy-efficient cooling. Remote monitoring and control ensure operators can adjust temperatures, initiate thaw cycles, and track performance in real time.
Key Features
- Two independently controlled compartments for refrigeration and freezing
- Temperature range: +30 °C to -30 °C per zone
- Energy-efficient insulation (140–220 mm)
- Stainless steel base with TRI-Blech mounting system
- Floor load-bearing capacity up to 1,000 kg/m²
- Remote monitoring and control with data access and adjustment functions
- SUVA-compliant safety and HACCP-based design
- Flexible installation: floor-mounted, ramp-mounted, or connected directly to buildings
Dual Refrigerated & Deep-Freezer Container Models
The GABLER Combi range is available in four different sizes, each optimised for specific space and capacity requirements.
| Model | Description / Special Features | Capacity (Euro / Euronorm / Gastronorm) | External / Internal / Door Dimensions | Power / Other Key Specs |
|---|---|---|---|---|
| Combi 10.10 | Compact dual-zone unit, equal-sized refrigerated and freezer compartments for small-scale or laboratory use. | 4 Euro / 9 Euronorm / 16 Gastronorm | Ext: 7413×2892×2526 mm • Int: 7.6 + 7.6 m² • Doors: 2000×2000 + 900×2000 mm | 400 V / 3 Ph / 50 Hz • Pre-security 25 A • Plug 32 A 5P • Empty ≈3720 kg |
| Combi 15.10 | Mid-sized model with larger refrigerated zone paired with a smaller deep-freeze area, ideal for production support. | 8 Euro / 12 Euronorm / 24 Gastronorm | Ext: 8700×2970×2900 mm • Int: 10.9 + 7.25 m² • Doors: 2000×2000 + 900×2000 mm | 400 V / 3 Ph / 50 Hz • Pre-security 25 A • Plug 32 A 5P • Empty ≈4310 kg |
| Combi 15.15 | Equal-size compartments, both offering balanced capacity for refrigeration and freezing; suited for handling varied product types. | 9 Euro / 20 Euronorm / 36 Gastronorm | Ext: 10060×2970×2900 mm • Int: 10.9 + 10.9 m² • Doors: 1800×2000 + 900×1900 mm | 400 V / 3 Ph / 50 Hz • Pre-security 25 A • Plug 32 A 5P • Empty ≈5040 kg |
| Combi 20.15 | Largest model, with an extended refrigerated zone and generous deep-freeze capacity; optimal for large-scale operations. | 12 Euro / 20 Euronorm / 40 Gastronorm | Ext: 11600×2970×2900 mm • Int: 14.7 + 10.9 m² • Doors: 2000×2000 + 900×1900 mm | 400 V / 3 Ph / 50 Hz • Pre-security 32 A • Plug 32 A 5P • Empty ≈6300 kg |
Combination Container Optimised for Pharmaceutical & Chemical Cold Chains
The Combi range is more than just a storage solution. It is a scalable and flexible system that adapts to the complex demands of pharmaceutical and chemical supply chains. With its dual-zone design, energy efficiency, and compliance with the highest safety standards, it ensures the integrity of temperature-sensitive products while optimising operational efficiency.
Contact GABLER’s experts today to discuss how the Combi range can be tailored to meet your pharmaceutical or chemical storage requirements.
